Botron's line of over head high frequency ionization equipment bring both performance and reliability to the workstation. The snap on fan grills make for stress free easy maintenance. There is no need to play around with screws or tools to access the fan blades and emitter pins.

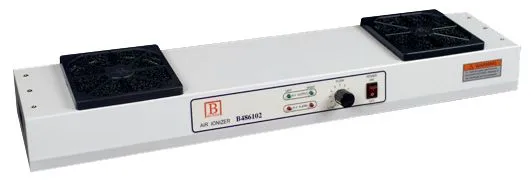

Botron's B486102 air ionizer is a high frequency unit that provides both reliability and performance. It's low profile design makes this ionization unit a great solution for ceiling and self mounting. The 2-fan design has a greater output and safely neutralizes static charge in a larger area than single fan designs.
Key Features
- High frequency ionization
- Abnormal HV alarm
- Ion balance /- 5v
- Decay time at 18" /- 1000V ~ /- 100V <2.0 seconds
- Air flow range of 210 - 360 cfm
- Airflow Adjusting Knob
- Fan Guards
- Green and Red LED Indicators
- Abnormal HV alarm
Applications
As with all of Botron's ionization units the B486102 is designed to neutralize electrostatic charge in personal bench top environments, sensitive materials assembly, packaging, cleanroom and laboratories. The unit can be mounted but is not limited to the underside of shelving, ceilings and walls.
Performance
- Ion balance /- 5v
- Decay time at 18" /- 1000V ~ /- 100V <2.0 seconds
- *All results are based according to EOS/ESD-STM 3.1-2000.
- *Results may vary based on test conditions.
Detailed Info
- Power supply: AC100 - 240V 50/60Hz
- Current consumption: 36VA
- Output HV: AC2200V - 68KHz
- Air volume: 8.5' - 21' / min
- Air flow: 210 - 360 cfm
- Noise level: 62dB at 3.0'
- Temperature: 0 - 40° C
- Humidity: 20 - 70% RH
- Ozone: < 0.007 ppm
- Indicators: Green LED, Red LED
- Controls: On/Off switch, fan speed knob
- Mounting: Adjustable stand/bracket
- Emitter: Tungsten Alloy
- Dimensions: 2.5"H x 26"W x 5.8"D
