Botron's line of over head high frequency ionization equipment bring both performance and reliability to the workstation. The snap on fan grills make for stress free easy maintenance. There is no need to play around with screws or tools to access the fan blades and emitter pins.

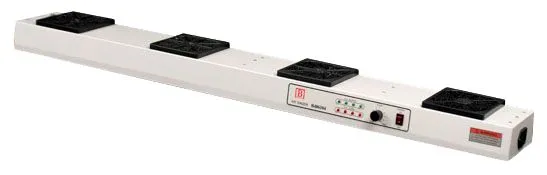

Botron's B486104 air ionizer is a high frequency unit that provides both reliability and performance. It's low profile design makes this ionization unit a great solution for ceiling and self mounting. The 4-fan design has a greater output and safely neutralizes static charge in a larger area than single and dual fan designs.
Key Features
- Slim compact design
- Abnormal HV alarm
- Rust free
- Adjustable fan speed
- Removable fan grills
- Does not need calibration
- Airflow Adjusting Knob
- Fan Guards
- Green and Red LED Indicators
- Abnormal HV alarm
Applications
As with all of Botron's ionization units the B486104 is designed neutralize electrostatic charge in personal bench top environments, sensitive materials assembly, packaging, cleanroom and laboratories. The unit can be mounted but is not limited to the underside of shelving, ceilings and walls.
Operation
Power on unit and adjust air flow for maximum neutralization. Aim unit at the area or items to be neutralized.
Performance
- Ion balance /- 5v
- Decay time at 18" /- 1000V ~ /- 100V <2.0 seconds
- *All results are based according to EOS/ESD-STM 3.1-2000.
- *Results may vary based on test conditions.
Detailed Info
- Power supply: AC100 - 240V 50/60Hz
- Current consumption: 48VA
- Output HV: AC2200V - 68KHz
- Air volume: 12.5' - 32' / min
- Air flow: 185 - 464 cfm
- Noise level: 62dB at 3.0'
- Temperature: 0 - 40° C
- Humidity: 20 - 70% RH
- Ozone: < 0.007 ppm
- Indicators: Green LED, Red LED
- Controls: On/Off switch, fan speed knob
- Mounting: Adjustable stand/bracket
- Emitter: Tungsten Alloy
- Dimensions: 2.5"H x 47.3"W x 5.8"D
